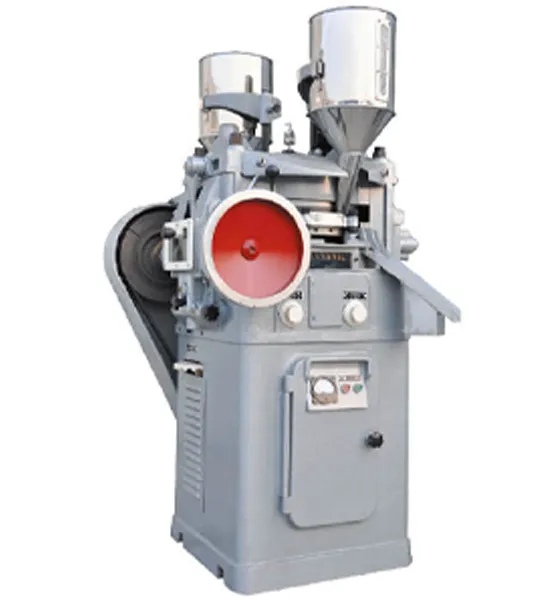

This machine is designed for the pressing of round tablets from various kinds of granular materials. It is a basic equipment for batch production of tablets, with double-press mechanism. It consists of two sets of feed assemblage and two sets of press roller unit. The turntable carries 33 sets of punches dies, wich 66 tablets be pressed for each revolution of the turntable. During operation, the rotation speed, depth of the filling and the thickness of the tablets are adjustable.The mechanical buffer unit will prevent punches and apparatus from overload damage.
A powder suction unit is attached to take in the residual powder during operation, so that blockage by the residual powder can be eliminated and collected powder material be reused.
This machine has won the Fine Quality Product Prize awarded by China Naional Medical Management Bureau.
Technical Parameters
转台冲模数 Number of Dies | 33付 sets |
最大压片压力 Max Pressure | 60千牛 KN |
最大压片直径 Max Dia. of Tablet | 13毫米 mm |
最大填充深度 Max Depth of Filling | 15毫米 mm |
最大片剂厚度 Max Thickness of Tablet | 6 毫 米 mm |
转盘转速 Turntable Rotation Speed | 11-28转/分 r/min |
生产能力 Production Capacity | 43000-110000片/时 pc/h |
电机功率 Motor Power | 3千瓦 kw, 960转/分 r/min,380伏 V/ 50赫 Hz |
外形尺寸 Overall Size(L×W×H) | 930×990×1600毫米 mm |
主机重量 Net Weight | 850公斤 kg |
